Ronald Cabin

A three-bedroom square-log cabin with 130.98 m² on the room schedule, a large kitchen and living area, and a separate sauna.

Product details

The supplier plan shows a central kitchen and living room, three bedrooms and two walk-in wardrobes. It also includes a sauna, a bathroom and a separate WC.

Layout and floor plan

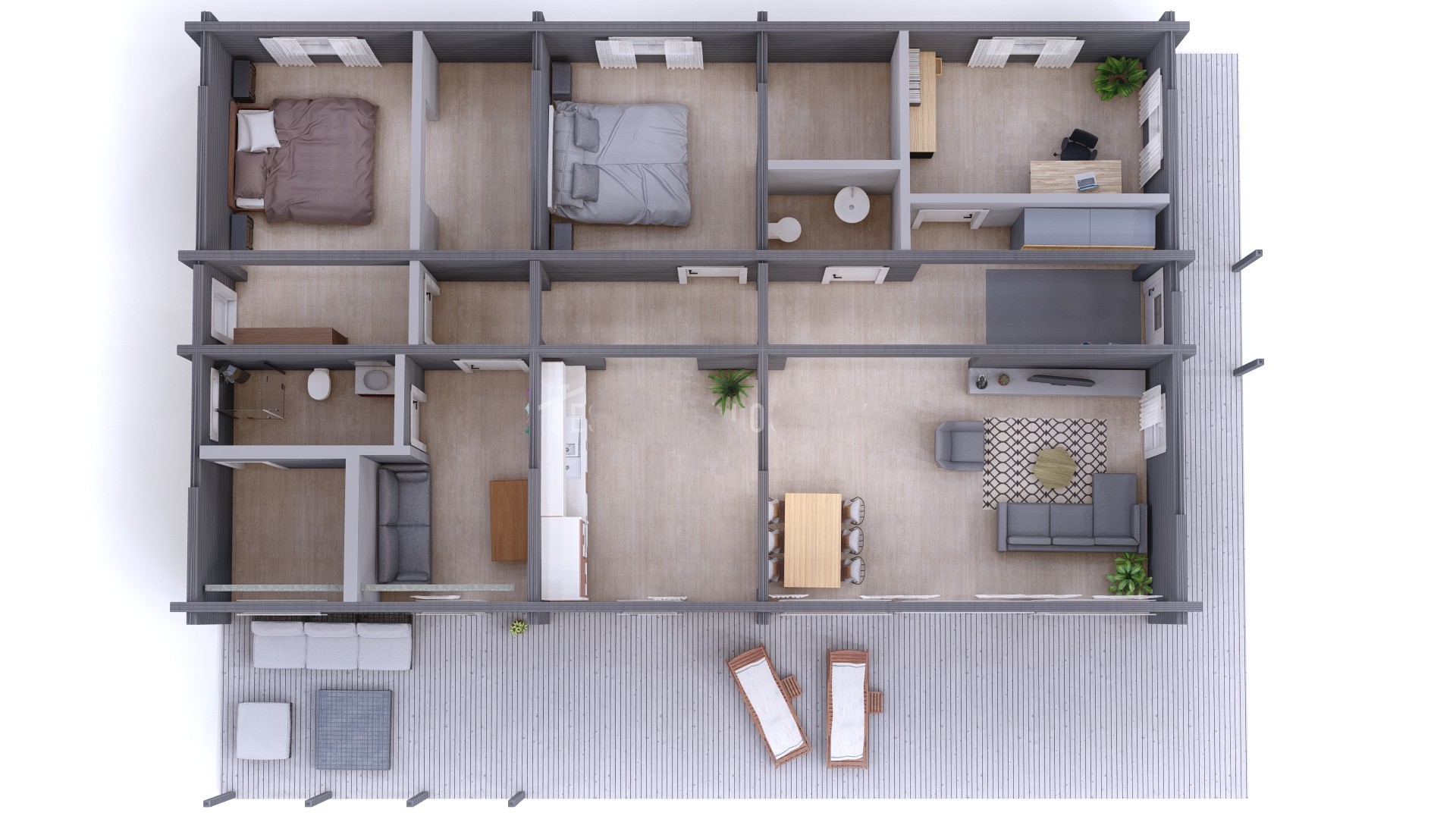

The supplier drawing shows a 38.51 m² kitchen and living room and three bedrooms measuring 16.46 m², 12.50 m² and 10.75 m². Two walk-in wardrobes, a 5.18 m² sauna, a 4.42 m² bathroom and a separate WC are also shown. The 130.98 m² room schedule covers the indoor spaces. A separate gallery drawing shows a 35.44 m² living area and a different room arrangement. Ask which plan applies to your quote.

Kit and finish

The published flat-pack kit uses 140 mm square logs, 100 mm floor insulation, 28 mm floorboards and decking, double-glazed timber windows and doors, and 150–200 mm roof insulation. Roof covering options are bitumen shingles or Ruukki metal panels. A concrete slab is recommended. Ask about block or pier foundations for your site.

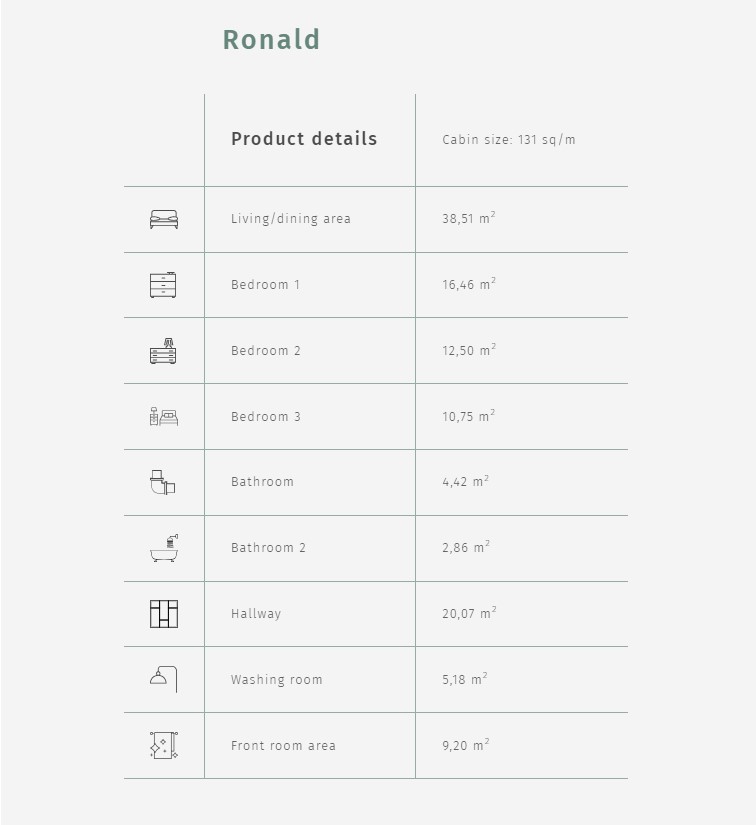

Specifications

Bedrooms

3

Plan area (room schedule)

130.98 m²

Kitchen and living room

38.51 m²

Bedroom areas

16.46 m², 12.50 m² and 10.75 m²

Sauna (plan)

5.18 m²

Bathroom (plan)

4.42 m²

Construction

140 mm square logs

Floor insulation

100 mm

Roof insulation

150–200 mm

Floorboards and decking

28 mm

Windows and doors

Double-glazed timber

Roof options

Bitumen shingles or Ruukki metal panels

Supply format

Flat-pack kit
